2027 Cushman Hauler 800X ELiTE Flame Red

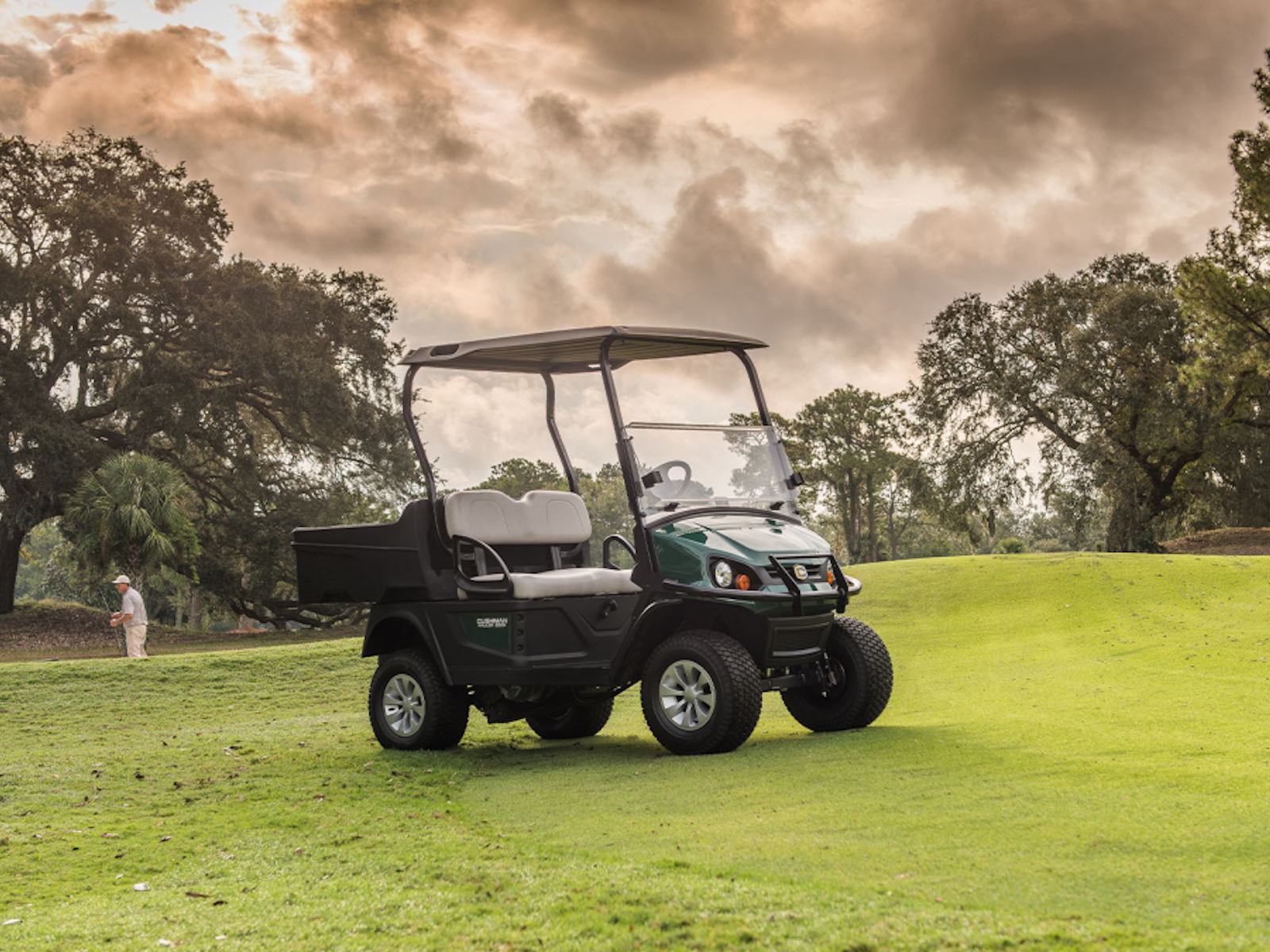

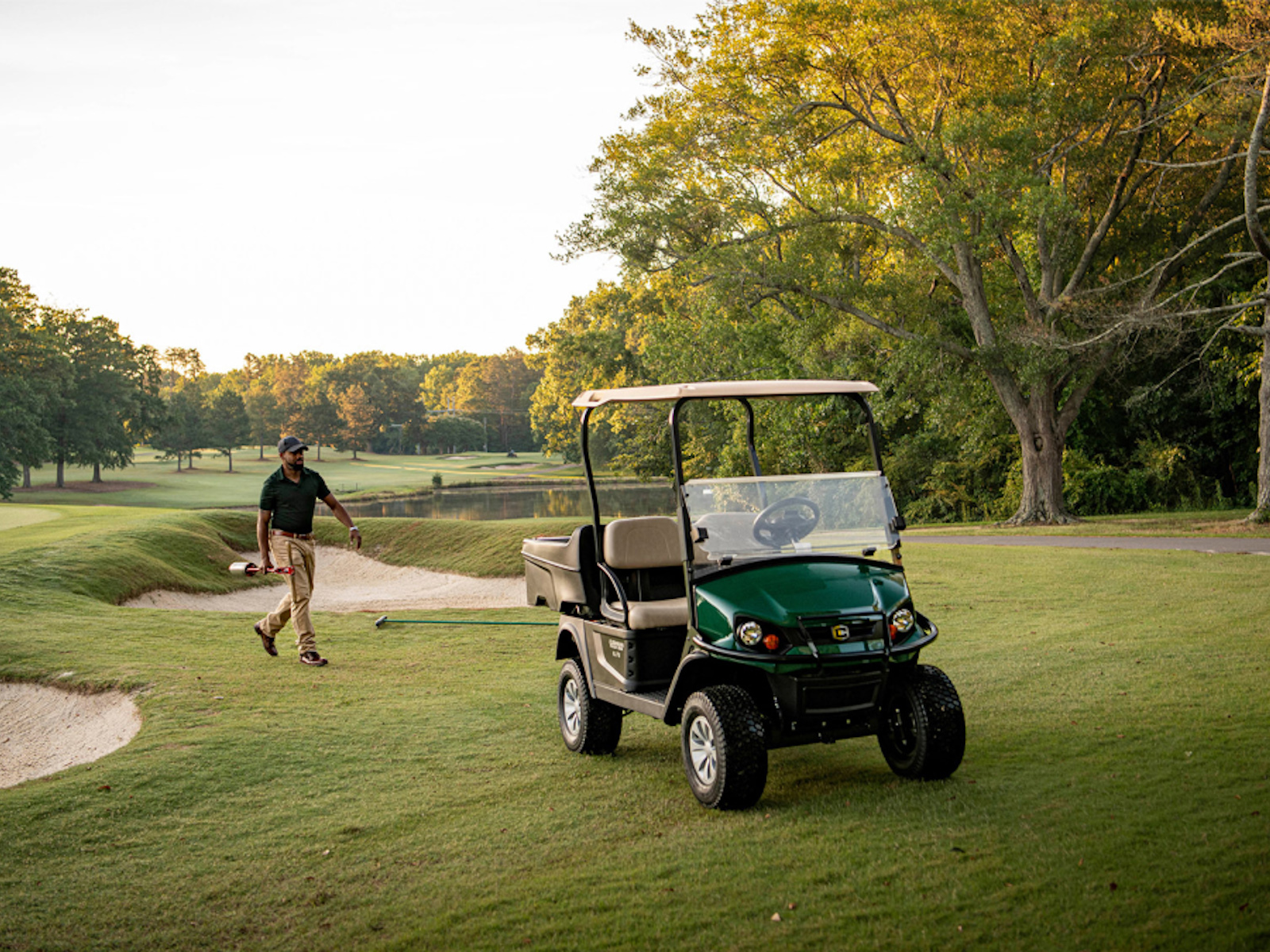

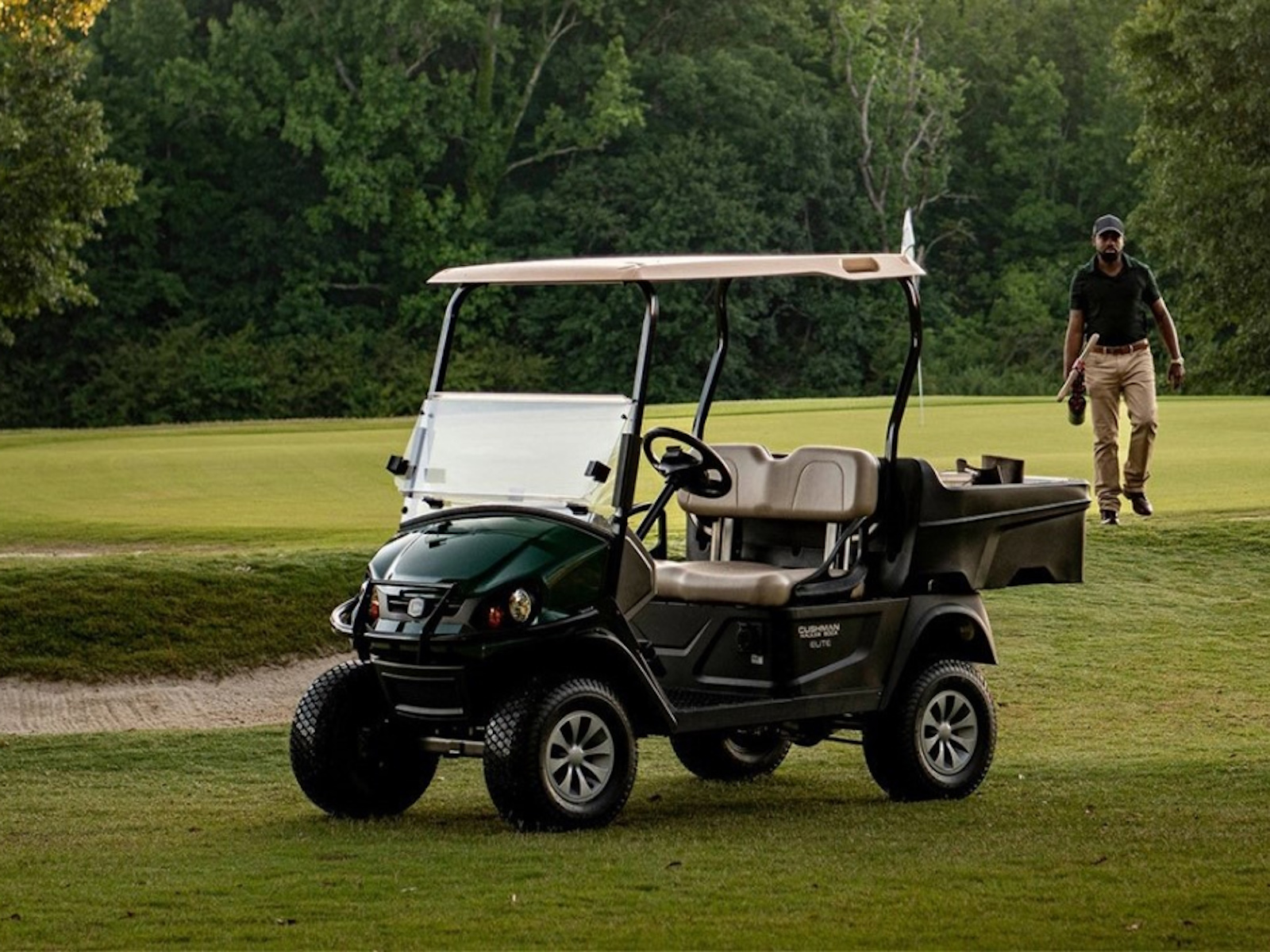

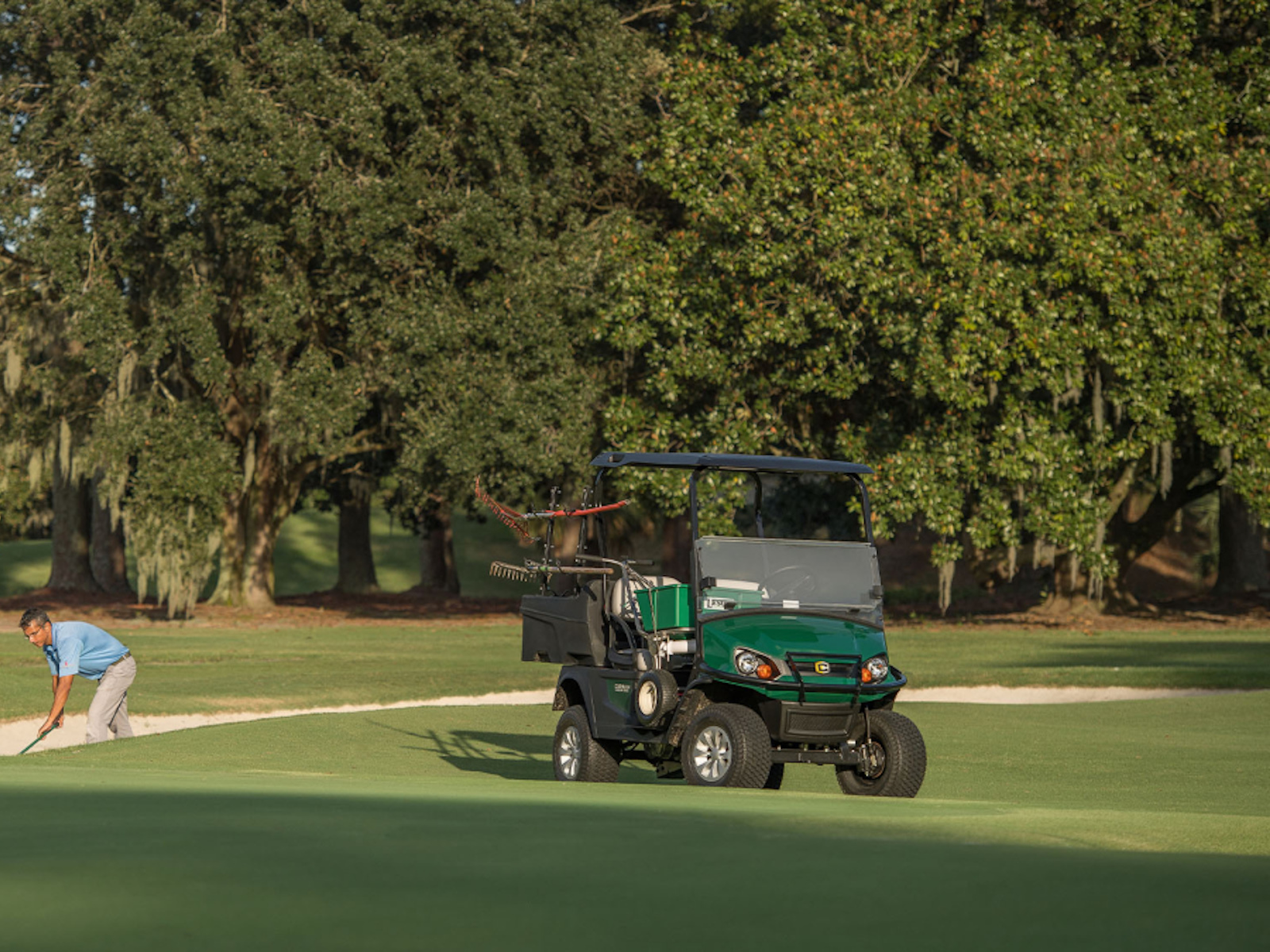

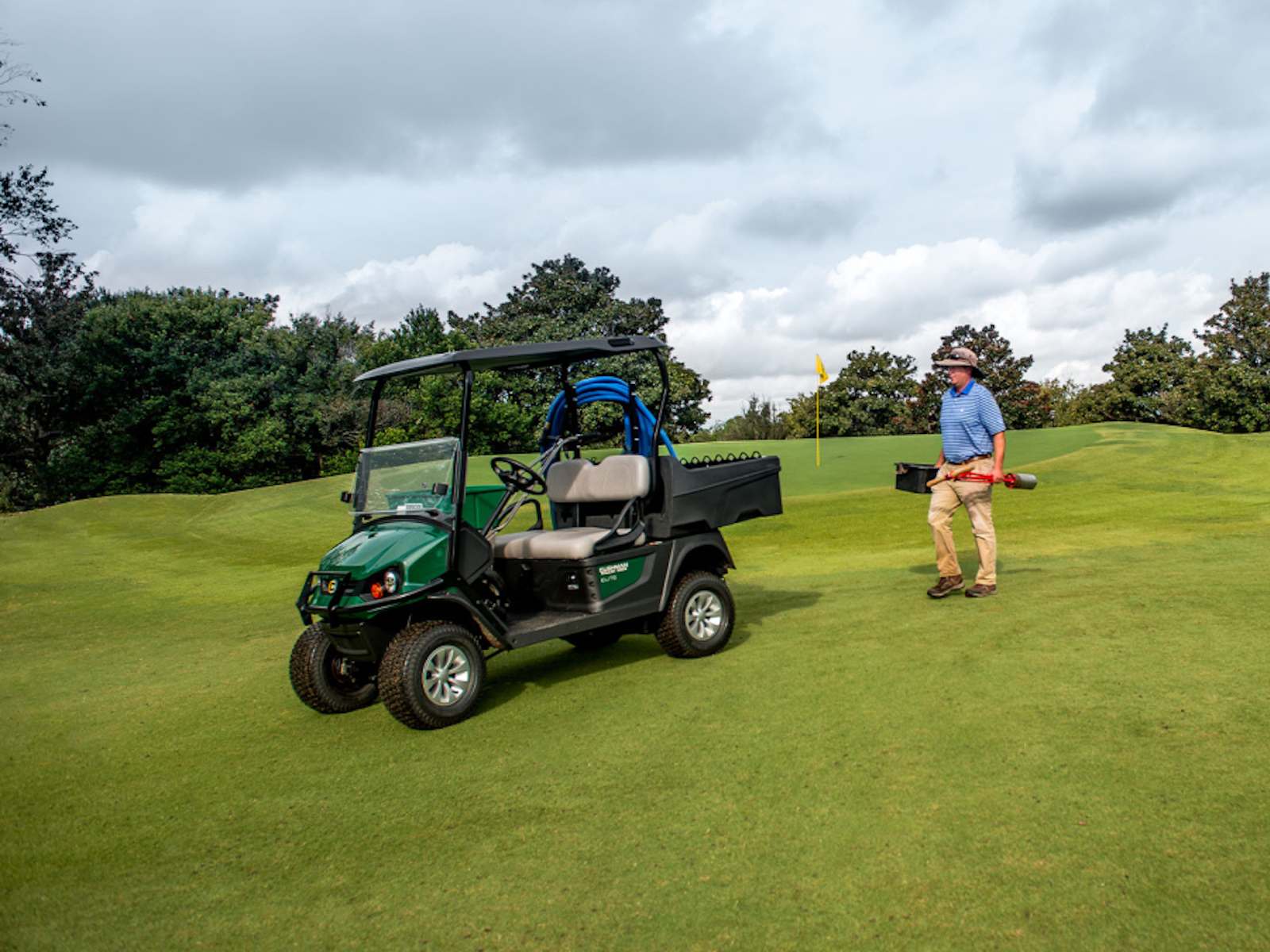

The Hauler 800 is designed for productivity. Easily transport tools and equipment around any course with your choice of maintenance-free ELiTE® lithium battery powered by Samsung SDI technology or a fuel-efficient 13.5 hp EFI gas engine. Expect nothing less than the best with the proven performance and versatility of the Hauler 800.
Features May Include:
Standard Bed Box
- The standard plastic bed box provides 8.4 cu ft of space and a 400 lb bed load capacity.
Rear Hitch Receiver
- Get the job done and tow up to 900 lbs. with an optional rear hitch receiver.
Floor Mount Attachment
- Safely carry your spreader with the optional floor mount attachment.
Standard Brush Guard
- Protect the front end of your vehicle with a standard brush guard.
Options:

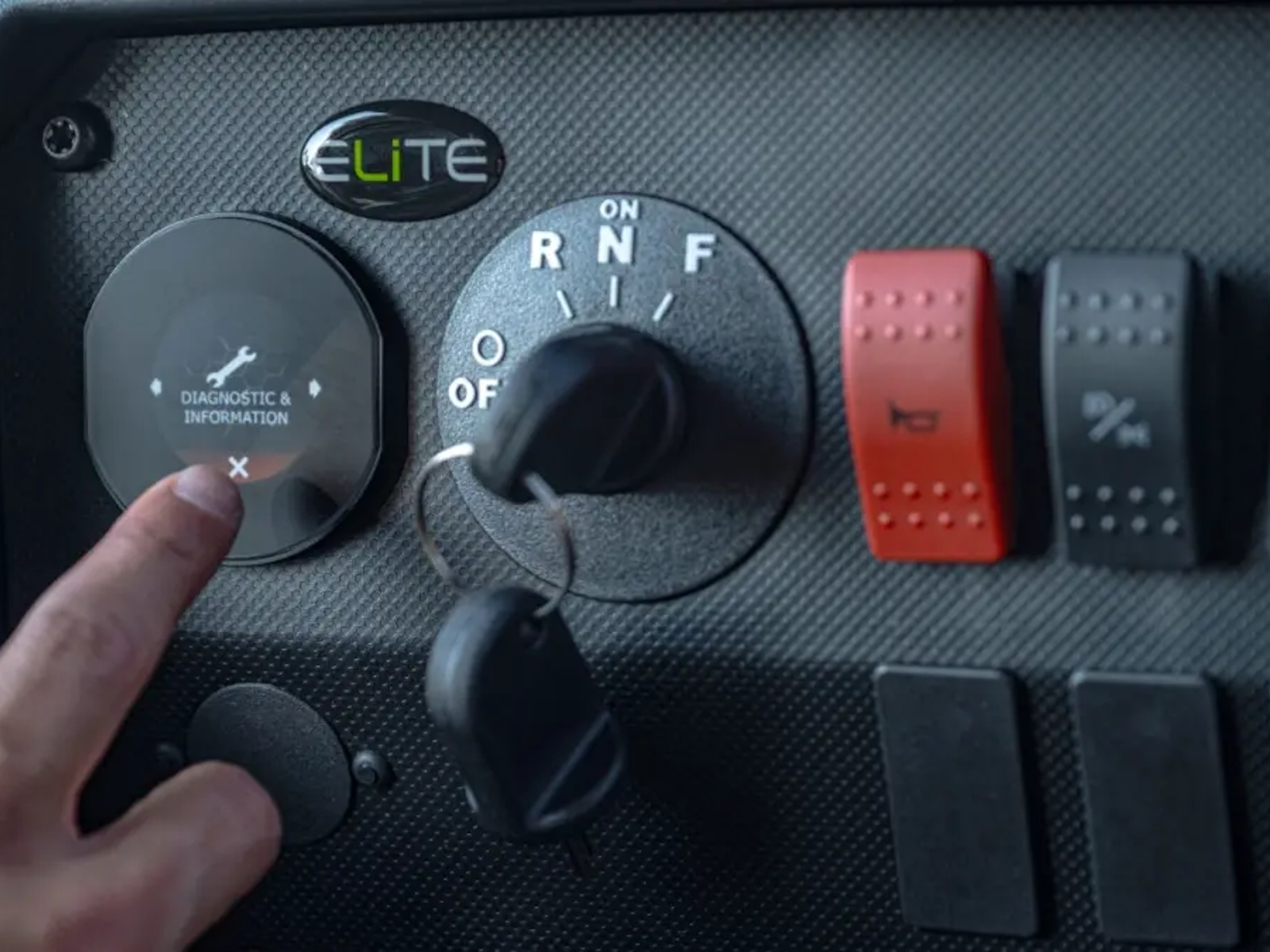

- IntelliGauge™ (ELiTE Only)
- 4-Wheel Mechanical Brakes
- Locking Glove Box

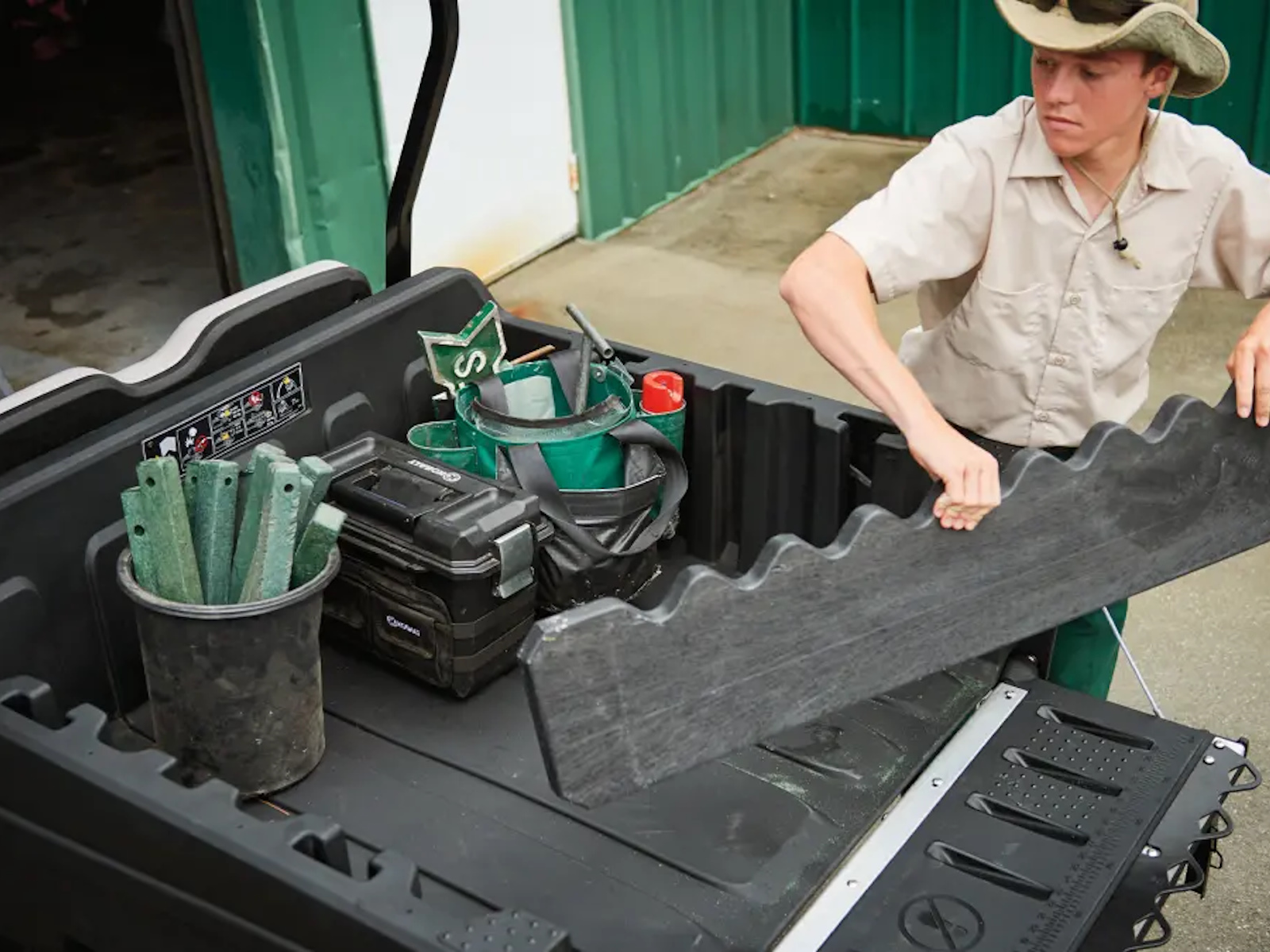

- Bed Dividers
- Floor Mount Attachment
- Windshield
- Canopy
- Electric Bed Lift
- Long-Handled Tool Holders
- Radio Holder
- Cargo Mesh Netting
- LED Headlights
- LED Taillights/Brake Lights
- Rearview Mirror
- USB Port
- Unique Key Switch
- Side Body Color
- Weather Enclosure
- ROPS-Certified Cab
- Ball Cage
- Hubcaps
- Rear Receiver Hitch
- Hour Meter
- Limited Slip Differential
- Rapid On-Board Charger
- Fuel/Oil Gauge
Info
Industry
Golf Cars
Make
Cushman
Model
Hauler 800X ELiTE Lithium
Trim
Flame Red
Year
2027
MSRP
N/A
Category
Golf Car
Subcategory
Utility
Specs
Fuel Type
Electric
Height
No Canopy: 47 in. (119.4 cm) | With Canopy: 69.5 in. (176.5 cm)
Front Wheel Track
37 in (94.0 cm)
Rear Wheel Track
38 in (96.5 cm)
Horsepower/kW
11.7 HP (8.7 kW) Peak | Source: 56.7 V Max
Electrical System
48 VDC
Battery
ELiTE 2.2, Single 56.7V Max Lithium
Battery Charger
Light World Charger, 56.7V, 10 ft. DC Cord
Speed Control
235 Amp AC Controller
Drivetrain
Direct-Drive AC Induction Motor
Gears/Ratio
Dash Mount FNR/Key Switch
Weight (Dry)
Two Batteries: 744 lb (351 kg) | Curb: 821 lb (372 kg)
Load Capacity
Vehicle: 725 lb (329 kg)
Tow Capacity
500 lb (226.8 kg) Max Load
Ground Clearance
5.5 in (14 cm) | Outside Circle: 18.9 ft (5.8 m)
Top Speed (Level)
16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph)
Parking Brake
Automatic Electro-Magnetic
Chassis/Frame
Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat
Body/Finish
Injection Molded TPO
Length
Overall: 110 in (280 cm)
Width
Overall: 49 in (125 cm)
Wheelbase
65.5 in (166.4 cm)
Cargo Bed
Deck: 8.4 cu ft (0.24 cu m)
Ignition/Starter
Pedal
Transaxle
Differential w/ Helical Gears
Seating
2 Person
Steering
Self-Compensating Rack and Pinion
Suspension
Leaf Springs w/ Hydraulic Shock Absorbers
Service Brake
Rear Wheel Mechanical Self-Adjusting Drum
Tires
20 x 8-10 (6 Ply Tires)
Fuel Capacity
